Coed-y-Dinas, Welshpool, SY21 8RP
Description
| Engine | Briggs & Stratton 7220 Professional Series V-Twin Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 18 HP (13.2 kW) – Gross power 22 HP Air cooled Dry air filter |
|
 |
Fuel tank capacity | 13 L |
 |
Gearbox | 4-wheel-drive hydrostatic transmission |
| Clutch | Electromagnetic clutch with P.T.O and blade brake. | |
 |

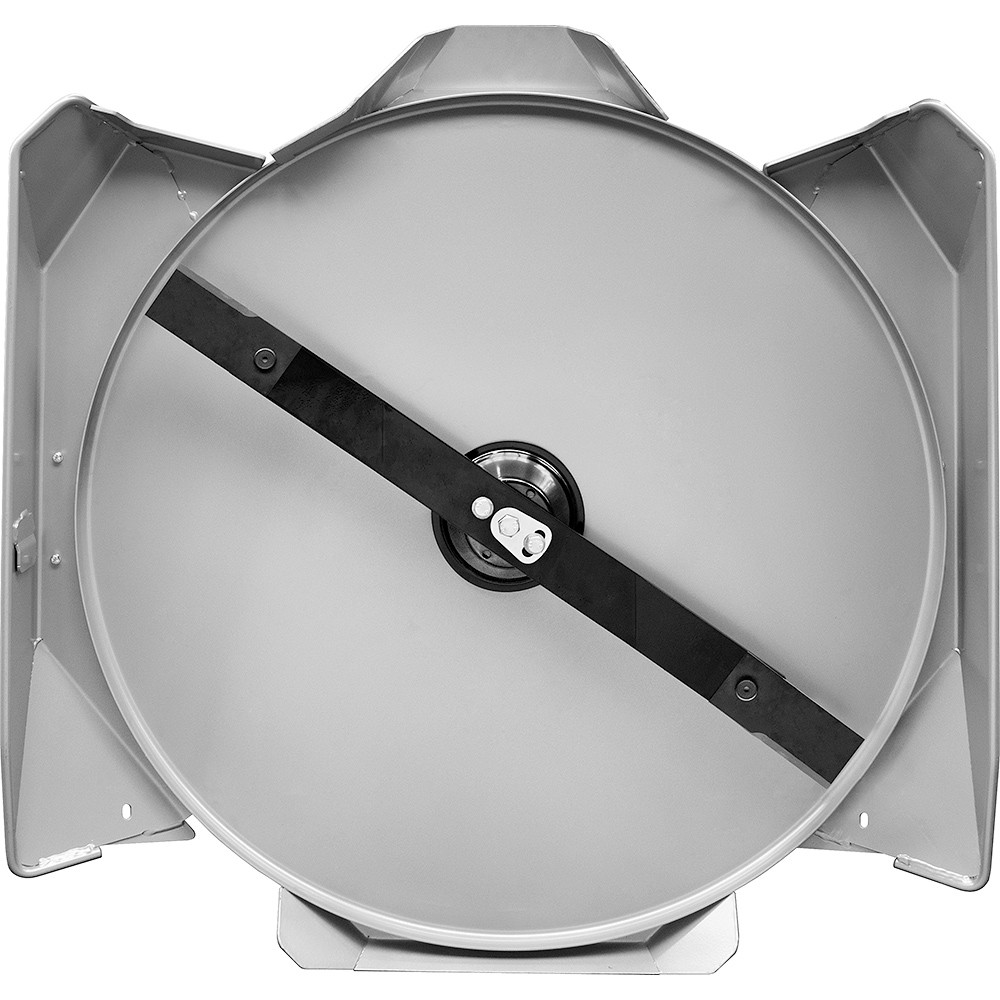

Cutter deck | Side and rear discharge |
| Cutting configuration | 1 rotating blade | |
| Cutting width | 93 cm | |
| Cutting height | From 3,5 cm to 13,5 cm with continuous adjustment | |
| Peripheral blade speed | 83 m/1″ | |
 |
Differential locking | On the rear axle, with pedal engagement. |
 |
Front tyres | 4.00-8 TRACTOR, puncture proof treated as standard feature. |
| Rear tyres | 20×10.00-8 TRACTOR | |
| Speed | Continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h. | |
| Inner turning radius | 70 cm | |
| Seat | Sprung and adjustable comfort seat, equipped with roll-bar. | |
| Parking brake | On the rear wheels with lever engagement | |
 |
Mowing capacity per hour (indicative) | 7200 m^2/h |
| Standard features | Tow bar and front LED headlight | |
 |
Length | 206 cm |
| Width | 103 cm | |
| Height | 118,5 cm | |
 |
Weight | 345 kg |
