Description

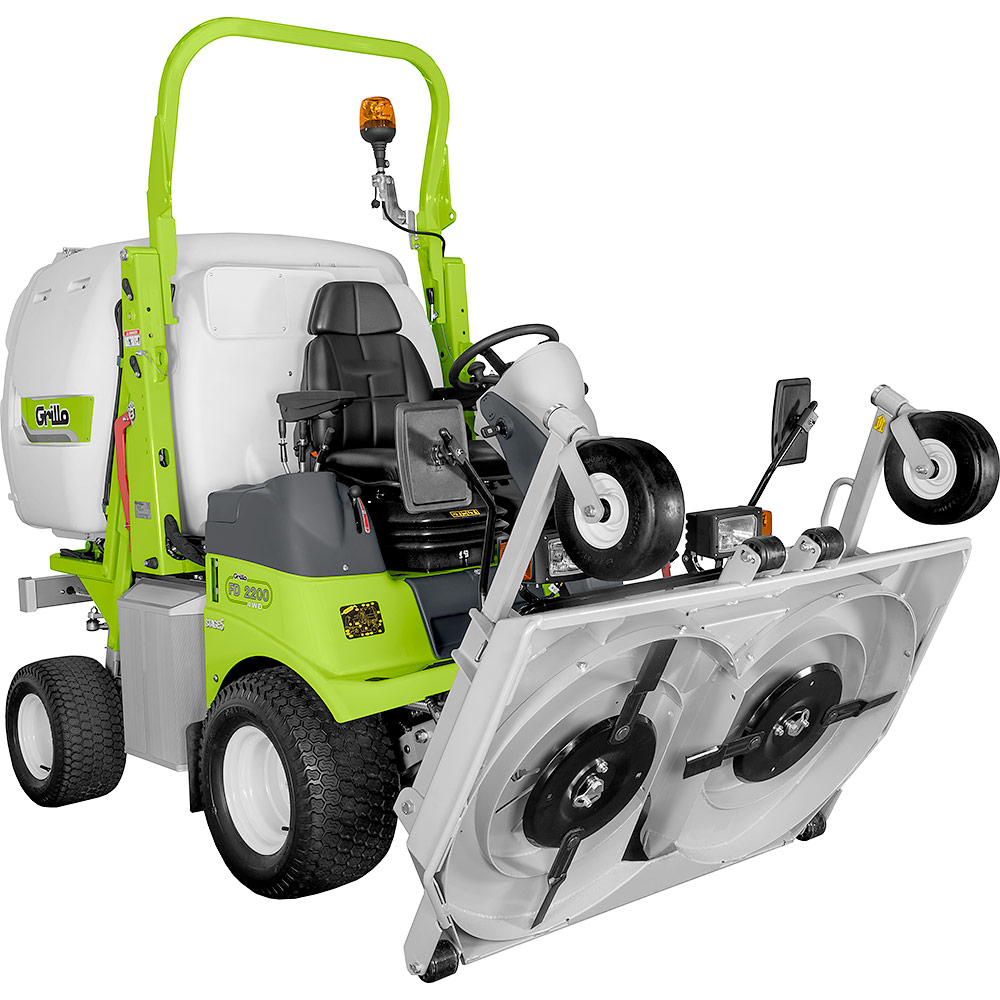

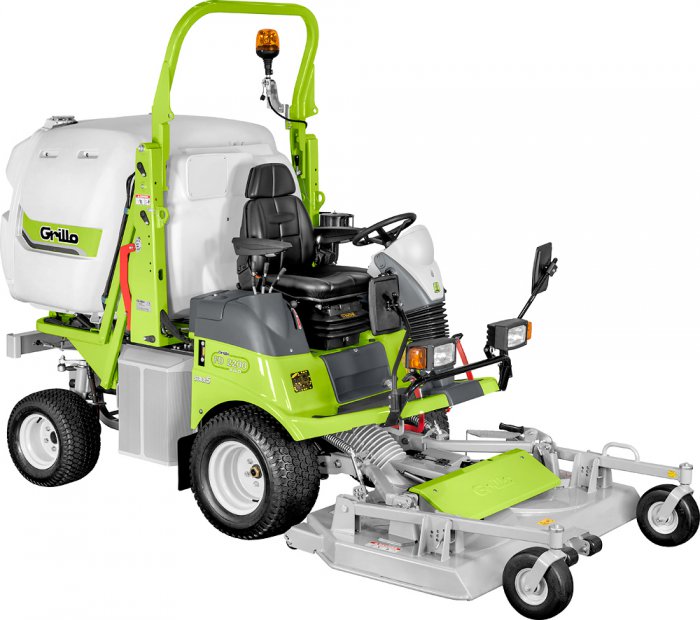

The FD 2200 TS represents the maximum expression of technology and performance that can be achieved by today’s hydrostatic mowers with collection.
It has 4 permanent drive wheels, front cutting deck, large grass collection container and raised discharge height. The state-of-the-art, powerful and reliable engine has low polluting emissions and complies with international STAGE 5 standards.
The 60 cm turning radius, the unique manoeuvrability, the maximum stability on slopes, the excellent cutting capacity of the robust front deck and a collection system capable of compacting the grass inside the large grass catcher, are able to satisfy every demanding operator who is attentive to the quality of his work.
| Engine | Yanmar 4TNV88C Stage5 Start electric, with 12 V battery Supply diesel Displacement 2190 cc, 4 Cylinders Power 47 HP (34.3 kW) Liquid cooled with hydraulic impeller and equipped with automatic radiator cleaning device Dry air filter with interchangeable filter cartridges, safety filter and prefilter |
|
 |
Fuel tank capacity | 50 L |
| Hydraulic oil tank | 25 L | |
 |
Traction | hydraulic, 4 wheel drive (permanent even with narrow turning radius) |
| Gearbox | hydrostatic transmission with hydraulic motors on the 4 wheels | |
| Clutch | hydraulic, with electric control activated through PTO and with blade brake | |
 |
Cutting height | hydraulic adjustable from 2 to 12 cm |
 |

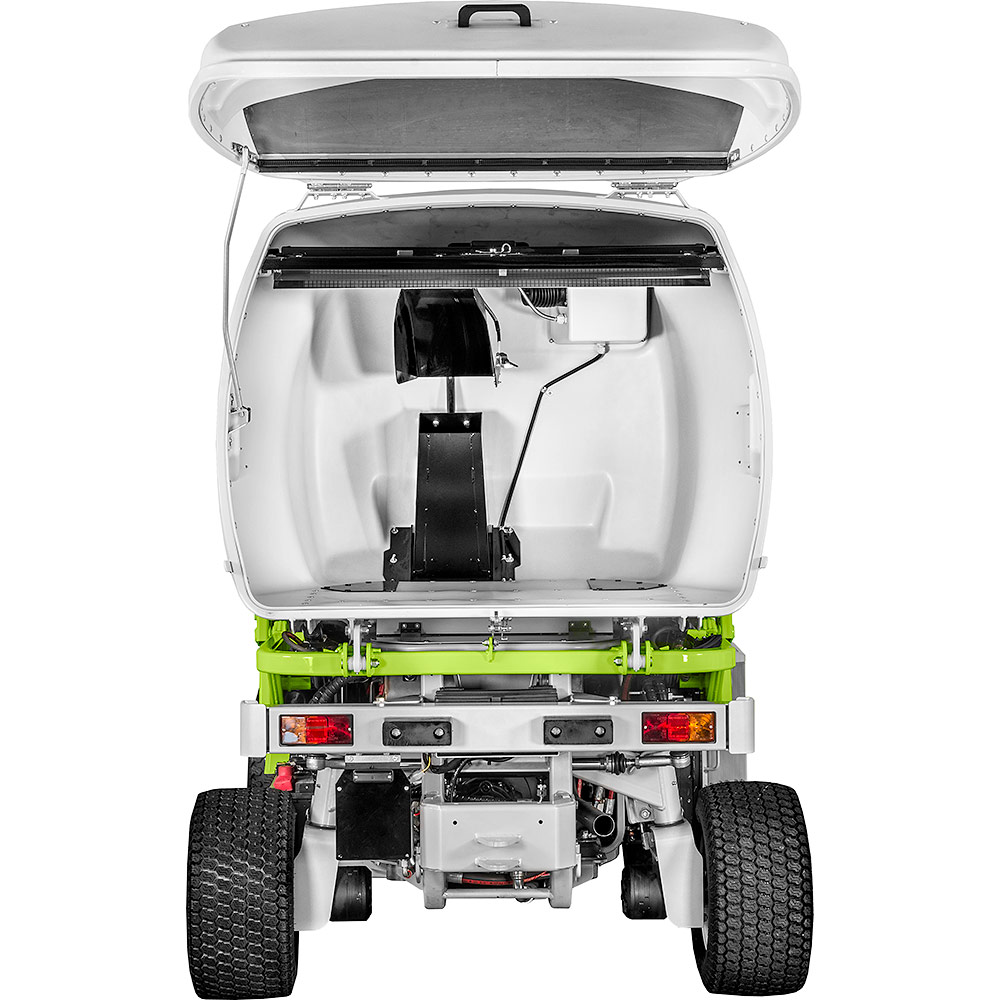

Grass collector capacity | 1400 L |
| Grass catcher charging system | Ø 400 cm (16 “) turbine with hydraulic motor fitted with a safety valve to avoid damage due to foreign objects. Turbine activation independent of the cutting deck. Double working speed. | |

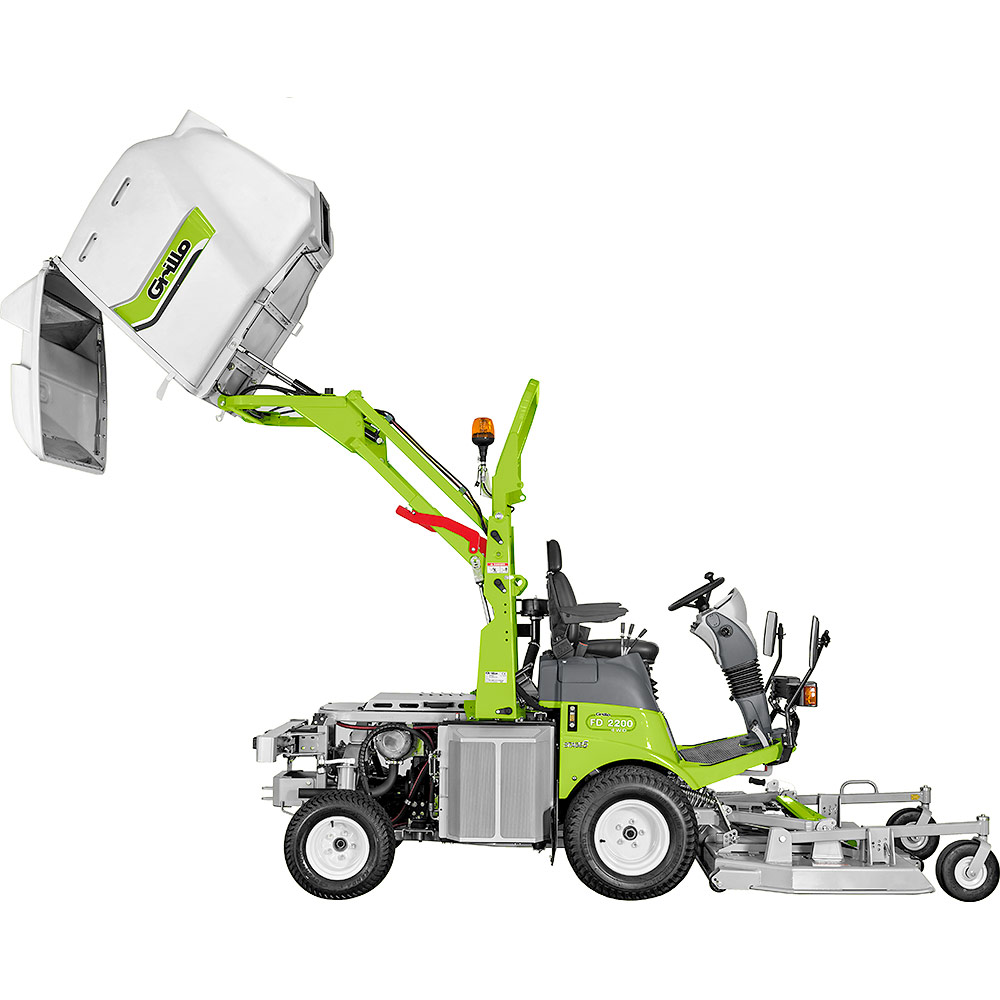

| Grass collector discharging system | hydraulic grass catcher emptying with automatic opening | |
| Maximal discharging height | 250 cm | |
| Rear projection | 50 cm | |
 |
Differential locking | self-engaging and manual with push button |
 |
Front tyres | 24×12.00-12 garden |
| Rear tyres | 20×10.00-10 garden | |
| Steering system | steering wheel with hydraulic drive | |
| Speed | from 0 to 22 km/h continuously variable | |
| Inner turning radius | 62 cm | |
| Seat | super comfort adjustable and sprung seat with armrests | |
 |
Mowing capacity per hour (indicative) | 15500 m^2/h |
| Standard features | automatic disengagement of blade and turbine when grass catcher is full. Hydraulic deck lifting and grass catcher emptying. Lights and indicators kit | |
| Standard features | digital display with rpm indication and safety micro-switches control | |
 |
Length | 281 cm without cutting deck – 364 cm with cutting deck [p/n. 9M5211] |
| Width | 138 cm without cutting deck – 162 cm with cutting deck [p/n. 9L9611] | |
| Height | 199 cm (with roll bar or cabin 231 cm) | |
| Distance between axles | 141 cm | |
| Clear span from the ground | 16 cm | |
 |
Weight | 1385 kg without cutting deck – 1656 kg [p/n. 9M5211] |
