Description
Technical data sheet FD 13.09 Stage5 4WD
Engine | Yanmar 3TNV82A Stage5 Start electric, with 12 V battery Supply diesel Displacement 1331 cc, 3 Cylinders Power 26 HP (18.9 kW) Liquid cooled Dry air filter with interchangeable filter cartridges, safety filter and prefilter |
|
Fuel tank capacity | 23 L | |
Hydraulic oil tank | 20 L | |
Traction | Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius) | |
Gearbox | Hydrostatic transmission with 4 hydraulic engines on the 4 wheels | |
Clutch | Clutch: hydraulic for PTO | |
Cutter deck | Cutting deck with collection and mulching kit | |
Cutting deck width | 141 cm | |
Cutting width | 132 cm | |
Cutting height | from 2 to 10 cm, continuously adjustable through hydraulic. | |
Grass collector capacity | 900 L | |
Grass catcher charging system | Load accelerator (Ø 350 mm) with floating blades, belt transmission and independent magnetic clutch. Motorised baffle providing full and even grass catcher filling. | |

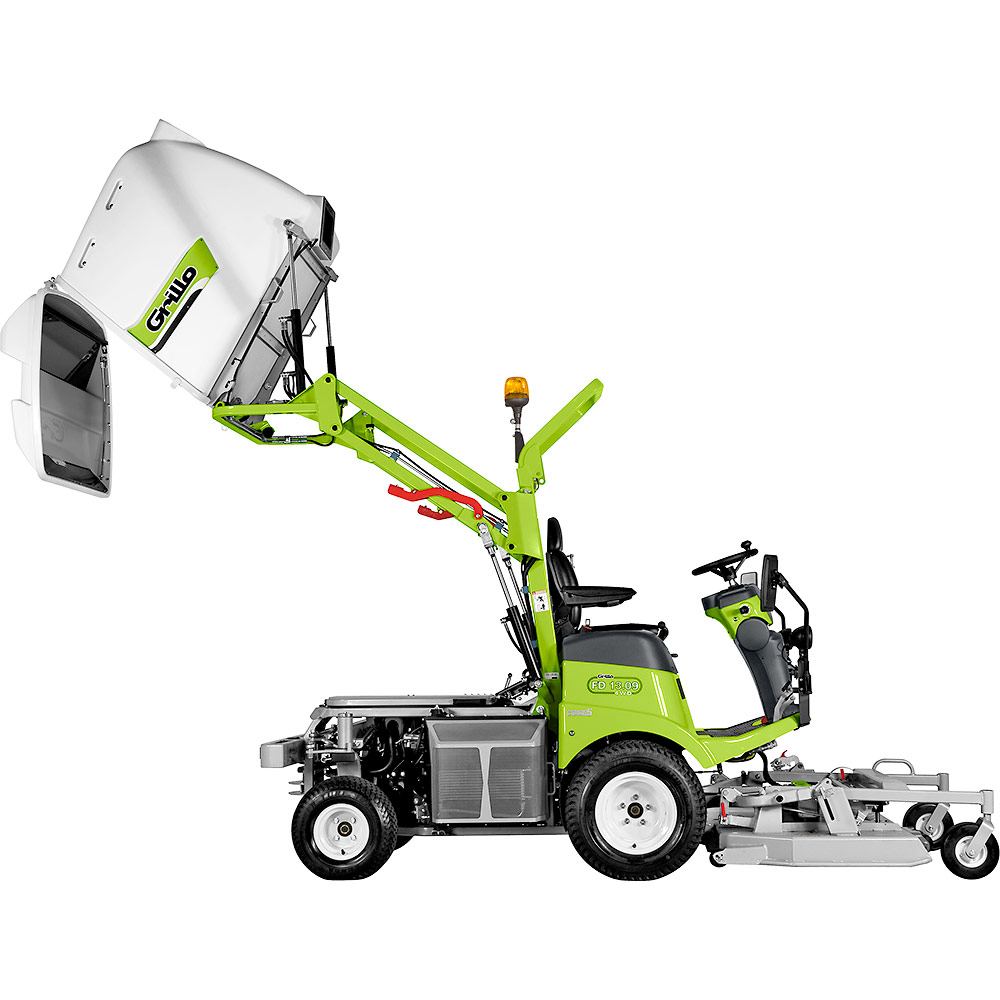

Grass collector discharging system | Automatic opening for grass-catcher hydraulic discharge | |
Maximal discharging height | 200 cm | |
Rear projection | 20 cm | |
Differential locking | Automatic differential lock and manual with push button | |
Front tyres | 23×10.50-12 TURF WHEELS | |
Rear tyres | 18×8.50-8 TURF WHEELS | |
Steering system | Hydraulic drive with steering wheel | |
Speed | From 0 to 15 km/h continuously variable | |
Inner turning radius | 31 cm | |
Seat | Super comfort and adjustable sprung seat with arm-rests. | |
Service brake | Drum brake | |
Parking brake | Drum brake | |
Mowing capacity per hour (indicative) | 12000 m²/h | |
Standard features | Automatic disengagement of blades and load accelerator when the grass catcher is full. Hydraulic cutting deck lifting and grass catcher discharge. Mulching kit for 132 cm cutting deck. Lights and indicator kit. | |
Length | 325 cm | |
Width | 141 cm | |
Height | 175 cm | |
Distance between axles | 123 cm | |
Clear span from the ground | 15 cm | |
Weight | 1040 kg without cutting deck; 1230 kg with cutting deck |
