Description
Technical data sheet FD 2200 Stage5 4WD
 |

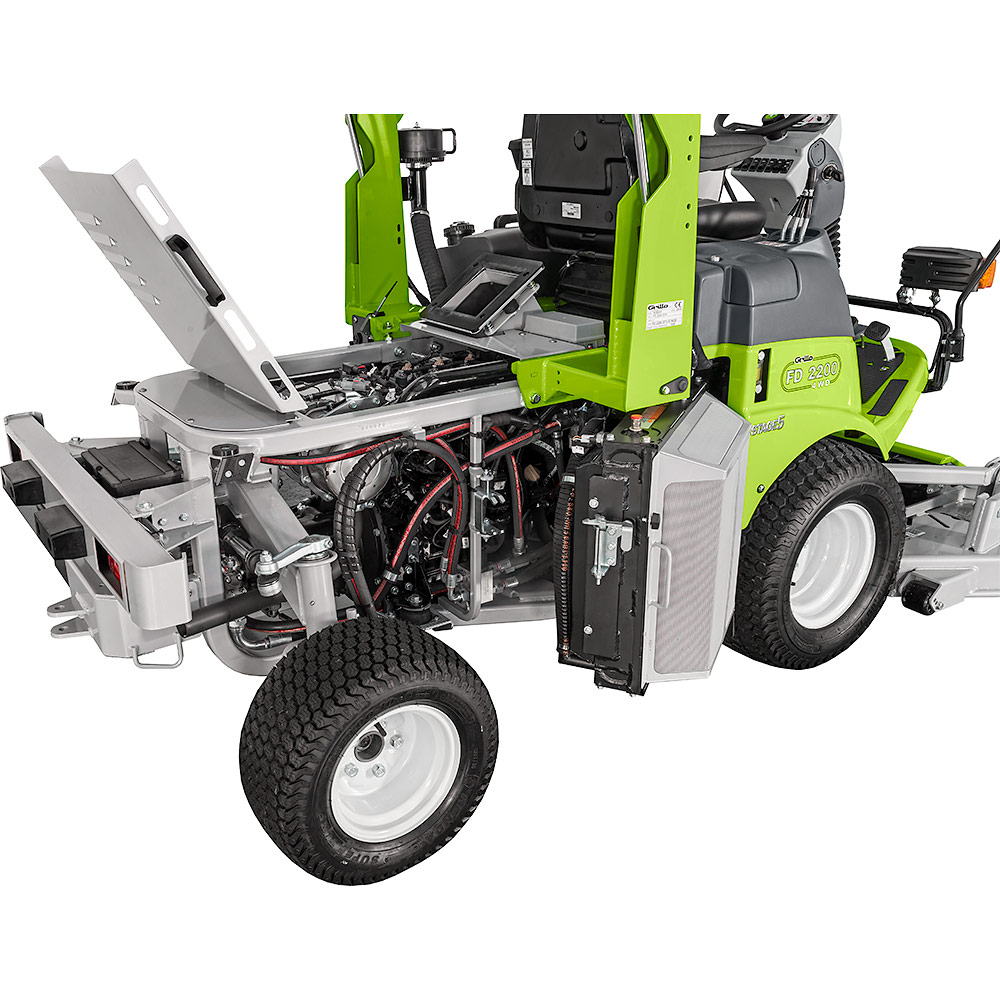

Engine | Yanmar 3TNV88C Stage5 Start electric, with 12 V battery Supply diesel Displacement 1642 cc, 3 Cylinders Power 37 HP (27.5 kW) Liquid cooled with electric impeller and equipped with automatic radiator cleaning device Dry air filter with interchangeable filter cartridges, safety filter and prefilter |
 |
Fuel tank capacity | 50 L |
| Hydraulic oil tank | 25 L | |
 |
Traction | hydraulic, 4 wheel drive (permanent even with narrow turning radius) |
| Gearbox | hydrostatic transmission with hydraulic motors on the 4 wheels | |
| Clutch | Hydraulic with electric control activated through PTO with blade brake | |
 |
Cutting height | Adjustable at 25 – 35 – 50 – 60 – 75 – 85 – 95 – 110 mm |
 |
Grass collector capacity | 1200 L |
| Grass catcher charging system | Charging turbine, 400 mm diameter, equipped with a hydraulic engine as well as a safety valve in order to avoid accidental damages. Independent activation from the cutting deck. Grass catcher equipped with motorised baffle inside the for even filling. | |

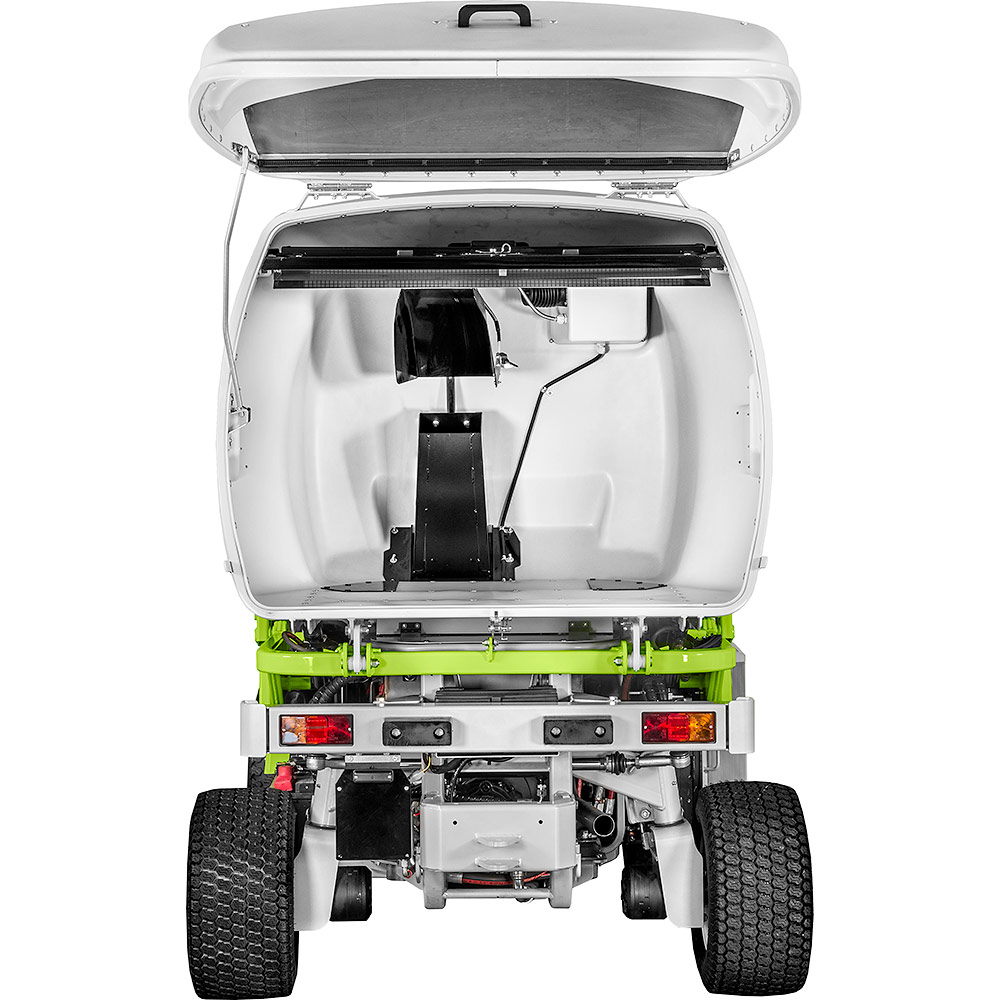

| Grass collector discharging system | Hydraulic grass catcher emptying with automatic opening | |
| Maximal discharging height | 230 cm | |
| Rear projection | 30 cm | |
 |
Differential locking | Self-engaging and manual by pushing the button |
 |
Front tyres | Turf 24×12.00-12 |
| Rear tyres | Turf 20×10.00-10 | |
| Steering system | Hydro-steer | |
| Speed | Continuously variable from 0 to 20 km/h | |
| Inner turning radius | 62 cm | |
| Seat | Comfortable seat equipped with springs with arm-rests and adjustable | |
 |
Mowing capacity per hour (indicative) | 15500 m^2/h |
| Standard features | Automatic disengagement of blades and turbine when the grass catcher is full. Hydraulic cutting deck lifting and emptying. Lights and indicator kit | |
 |
Length | 261 cm without cutting deck – 347 cm with cutting deck [cod. 9L9611] |
| Width | 138 cm without cutting deck – 162 cm with cutting deck [cod. 9L9611] | |
| Height | 183 cm with the roll bar let down – 243 cm with roll bar or cabin | |
| Distance between axles | 126 cm | |
| Clear span from the ground | 16 cm | |
 |
Weight | 1270 kg without cutting deck – 1490 kg with cutting deck [cod. 9M6711] |
