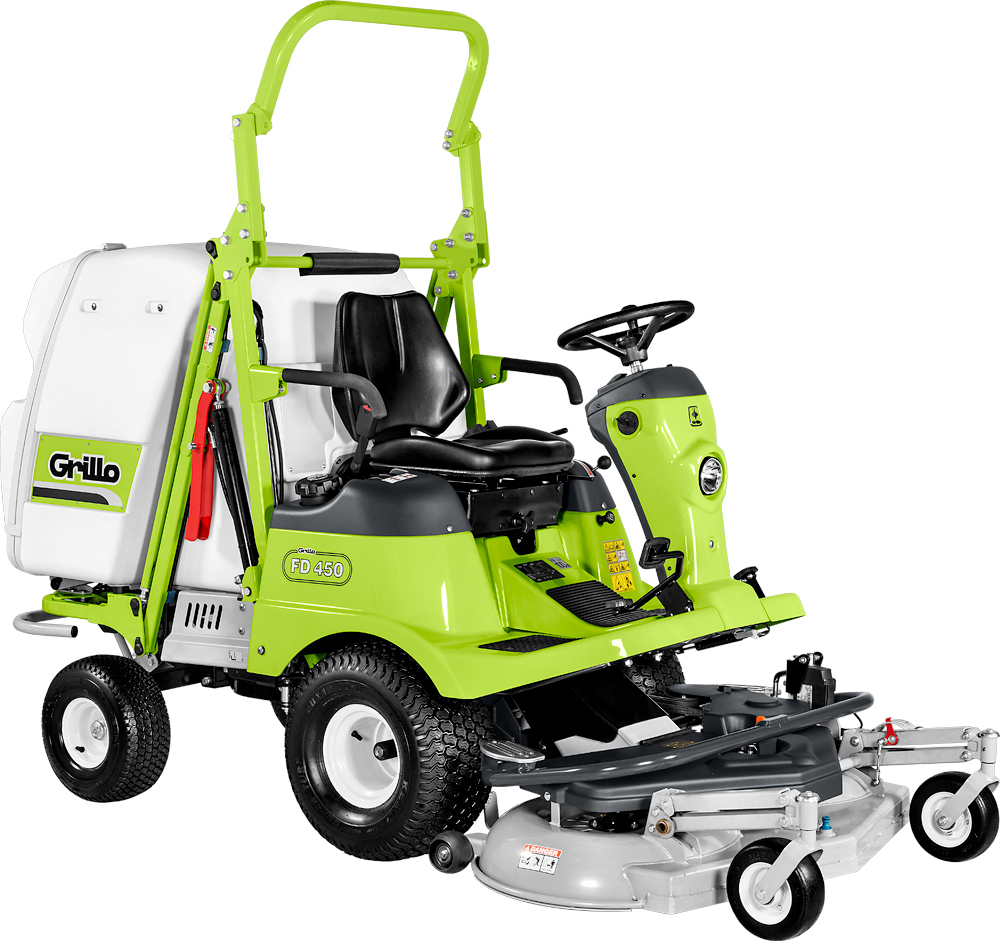

Grillo FD450 Out-Front Mower

POA

Description

A professional hydrostatic mower with front-mounted cutter deck with a grass-catcher capacity of 450 Lt. The grass-catcher discharge height is 170 cm with an ejection of 45 cm; the cutting and high performance collection of this model are its best features.
The innovative cutting system “Grillo Overblow” allows tremendous acceleration of the grass/air flow into the discharge chute considerably increasing its collection capability, even in damp,wet conditions whilst at the same time keeping its noise level of the whole cutting/collecting system extremley low.
The front-mounted cutter deck gives the operator excellent visibility of his working area.

The easy light steering and exceptionally small turning circle make the Grillo FD450 a mower suitable for domestic use but at the same time equipped with all the necessary features for the professional operator.
The controls to adjust the cutting height, lift the cutter deck, raise and tip the grass-catcher are via an electrical push button.

The FD450s cutter deck is unique. It has twin counter-rotating blades (which are not timed) plus a small front blade. It is a real out-front mower deck: 50% of its surface is free from obstacles thus ensuring perfect visibility of the working area.
It allows precise cutting around bushes or under low-positioned branches and therefore reduces the time spent using hand mowers to finish off these areas. The deck also has additional front and side reinforcements.
The blades drive belt is double backed ( not toothed): in the event of contact with unseen objects it should not suffer damage.

Technical data sheet FD 450
Engine Briggs & Stratton 7220 Professional Series V-Twin
Start electric, with 12 V battery
Supply fuel
Displacement 656 cc, 2 Cylinders
Power 18 HP (13.2 kW) – Gross power 22 HP
Air cooled
Dry air filter
Fuel tank capacity 17 litres (reserve tank 2,5 litres)
Transmission Hydrostatic transmission with differential locking
Clutch Electromagnetic PTO clutch with magnetic blade brake
Cutter deck Frontal cutting deck with collection. Mulching kit cod. 9M0611 is an optional attachment. Solid wheels. Cutting deck with coupling for washing.
Cutting configuration 3 rotating blades
Cutting deck width 1190 mm
Cutting width 1130 mm
Cutting height Continuous electric cutting height adjustment from 25 to 90 mm
Grass collector capacity 450 litres with full grass catcher motorised micro-switch.
Grass collector discharging system Grass-catcher discharge and lifting hydraulically operated. Movements are activated through electric buttons. The grass-catcher opening is automatically activated.
Maximal discharging height 170 cm
Rear projection 45 cm
Differential locking Mechanical with pedal control
Front tyres 20×10.00-8 Turf wheels
Rear tyres 15×6.00-6 Turf wheels
Steering system With steering wheel, hydraulic drive, forward and reverse gear engaged through pedal
Speed 0-11 km/h (forward) and 0-6 km/h (reverse) through pedal control device
Inner turning radius 30 cm
Seat Dampened seat, adjustable by means of a lever
Parking brake Disk brake
Mowing capacity per hour (indicative) 8000 m^2/h
Standard features Tow bar and roll bar
Length 2680 mm
Width 1190 mm
Height 1460 mm with lowered roll bar; 1940 mm with raised roll bar
Weight 450 kg
