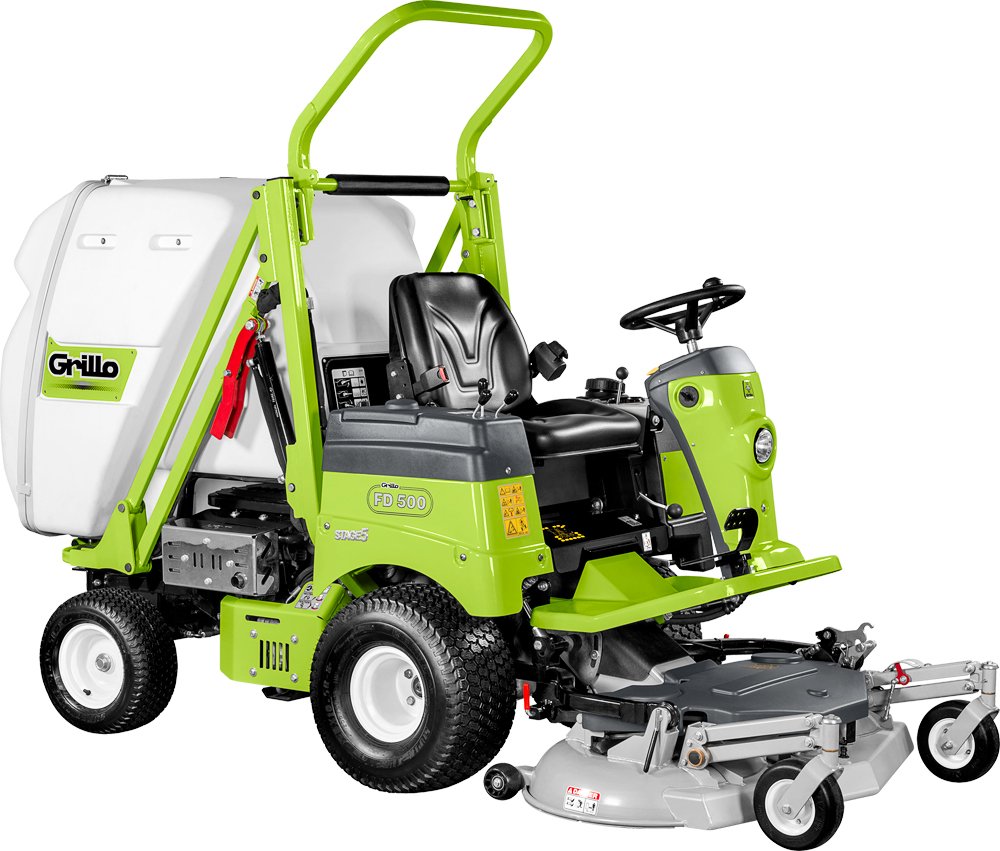

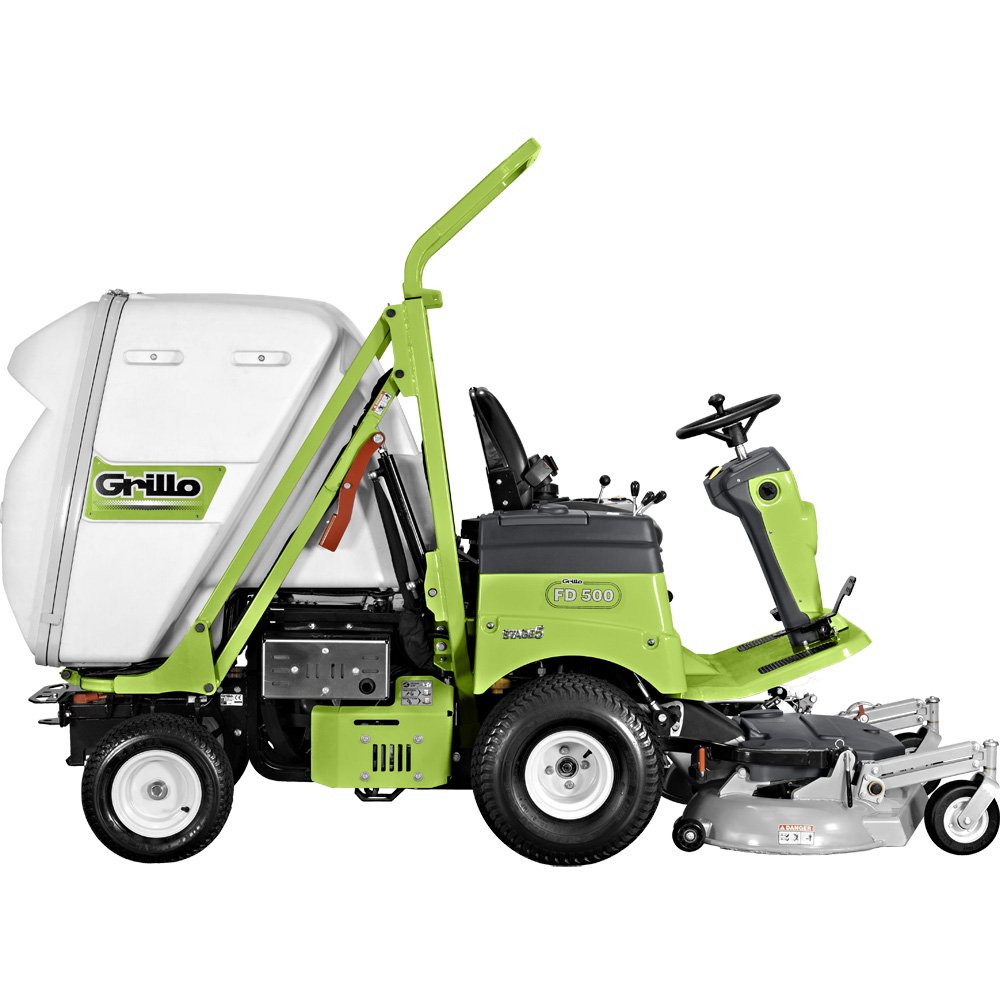

Grillo FD500 Out-Front Mower

Description

A professional hydrostatic mower with front-mounted cutter deck with a grass-catcher capacity of 700 Lt. The grass-catcher discharge height is 170 cm with an ejection of 45 cm; the cutting and high performance collection of this model are its best features.
The innovative cutting system “Grillo Overblow” allows tremendous acceleration of the grass/air flow into the discharge chute considerably increasing its collection capability, even in damp,wet conditions whilst at the same time keeping its noise level of the whole cutting/collecting system extremley low.
The front-mounted cutter deck gives the operator excellent visibility of his working area.

Technical data sheet FD 500 Stage5

	Engine	Kubota D722 Start electric, with 12 V battery Supply diesel Displacement 722 cc, 3 Cylinders Power 18 HP (13.2 kW) Liquid cooled with electric impeller and equipped with automatic radiator cleaning device Cyclonic integrated air filter
	Fuel tank capacity	22 L.
	Hydraulic oil tank	6,7 L.
	Traction	hydrostatic, 2-wheel drive with cascade reduction gear, parking brake and differential.
	Cutter deck	Cutting deck with collection
	Cutting configuration	3 blades.
	Cutting width	113 cm.
	Cutting height	from 2.5 to 9 cm continuously variable and electric adjustment from the driver’s seat.
	Grass collector capacity	700 L.

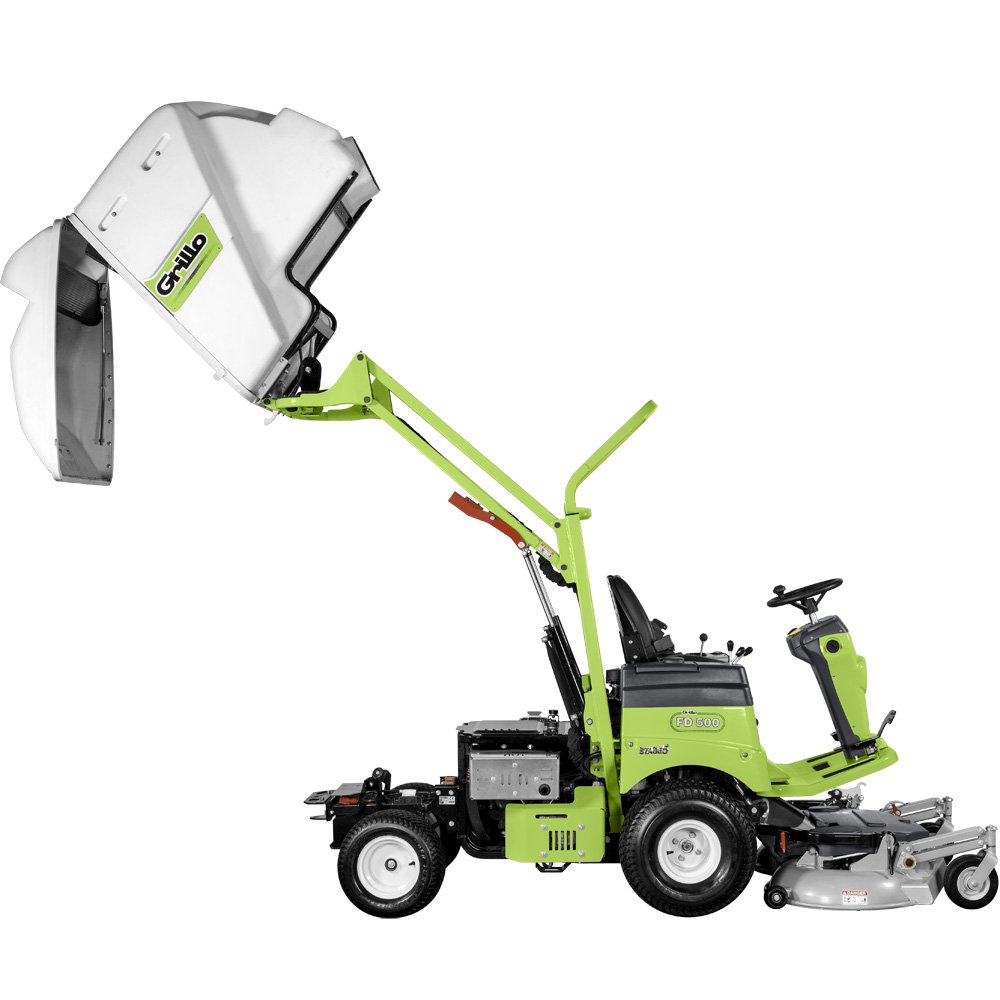

	Maximal discharging height	190 cm
	Rear projection	15 cm.
	P.T.O.	electormagnetic, with integrated blade brake.
	Differential locking	mechanical with pedal control

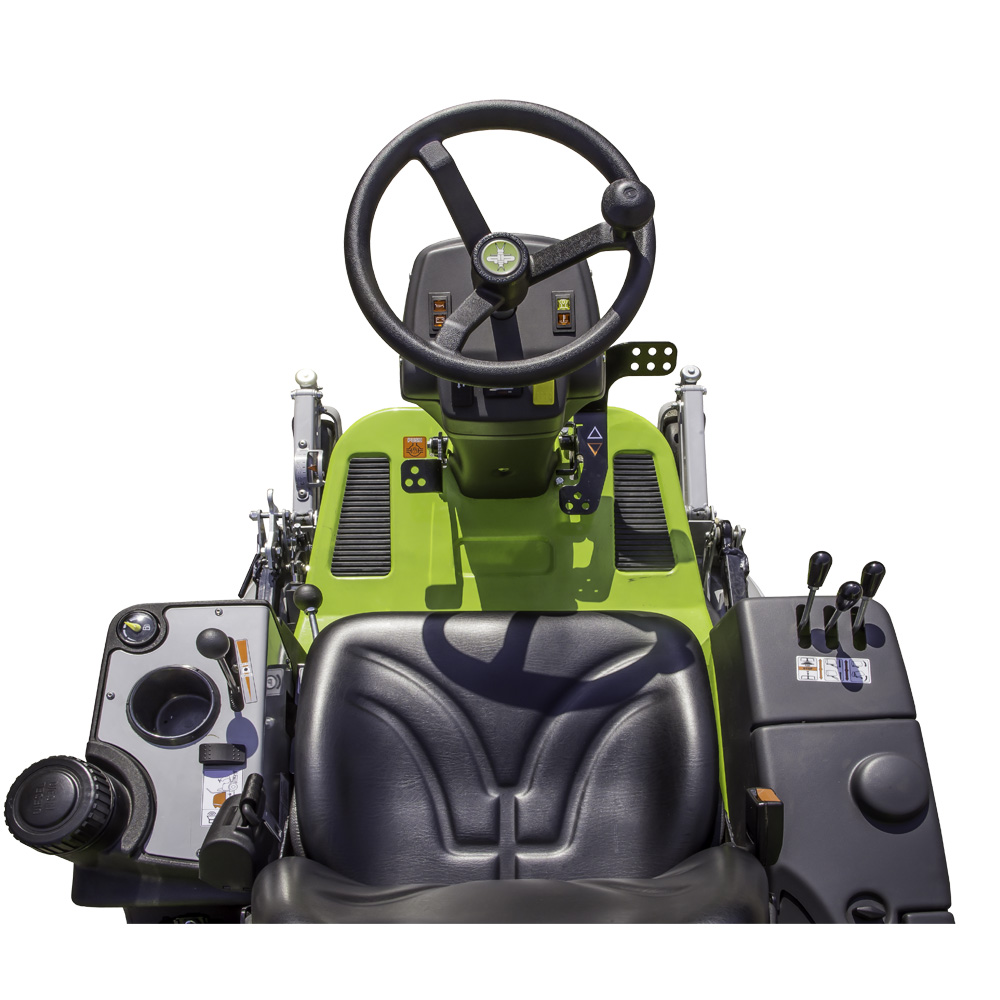

	Steering system	steering wheel with hydraulic drive, with pedal operated forward and reverse gears.
	Speed	0-13 km/h continuously variable
	Inner turning radius	32 cm
	Tyres	front 20×10.50-8 GARDEN; rear 16×6.50-8 GARDEN
	Seat	sprung and adjustable, seat belt included
	Brakes	parking brake, disc brake on gearbox.
	Mowing capacity per hour (indicative)	7500 m²/h
	Implements	cutting deck with collection 113 cm, mulching kit.
	Length	271 cm.
	Width	119 cm.
	Height	151 cm (roll-bar lowered); 193 cm (roll-bar raised)
	Distance between axles	110 cm.
	Clear span from the ground	12 cm.
	Weight	630 kg (with cutting deck).
