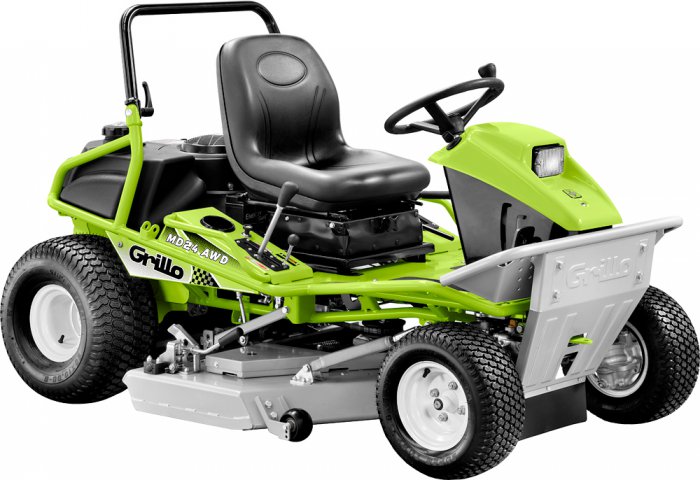

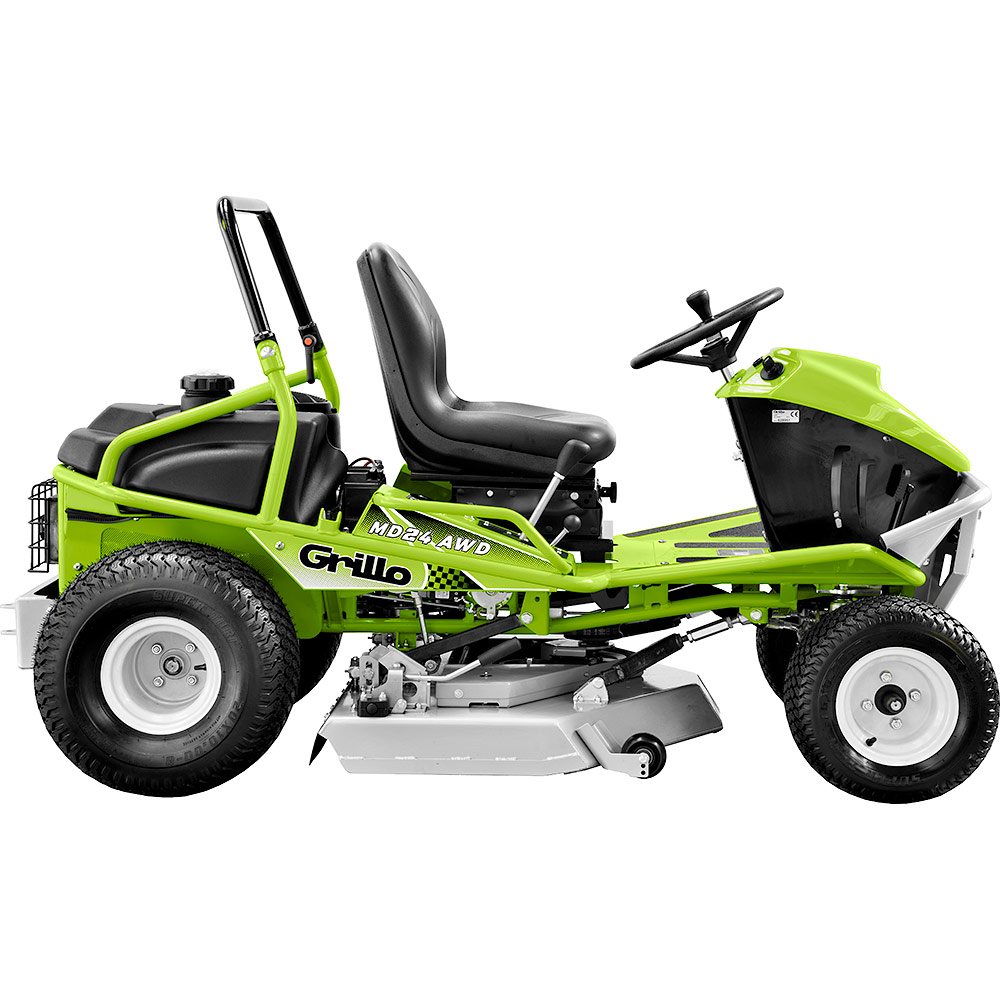

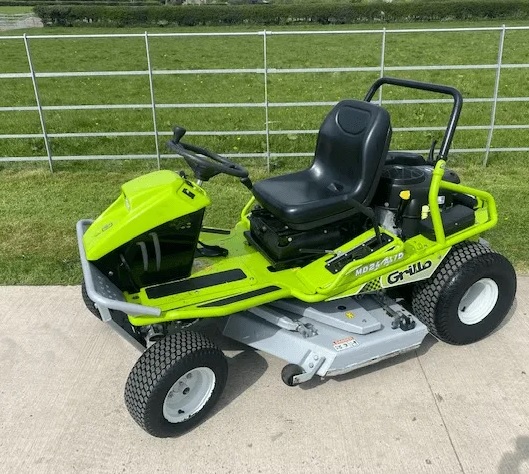

Grillo – MD24AWD

POA

Description

Grillo MD24AWD, All wheel drive, 18hp Petrol engine, 110cm rear discharge or mulching via “Quick Shift” lever.

Engine Briggs & Stratton 7220 Professional Series V-Twin
Start electric, with 12 V battery
Supply fuel
Displacement 656 cc, 2 Cylinders
Power 18 HP (13.2 kW) – Gross power 22 HP
Air cooled
Dry air filter
Fuel tank capacity 13 L
Gearbox 4-wheel-drive hydrostatic transmission.
Clutch Electromagnetic clutch with P.T.O and blade brake.
Cutter deck rear discharge or mulching via “Quick Shift” lever.
Cutting configuration 3 rotating blades.
Cutting width 110 cm
Cutting height Continuously adjustable from 2,5 to 10 cm via gas spring.
Peripheral blade speed 83 m/1″
Differential locking On the rear axle, with pedal engagement.
Front tyres 16×6.50-8
Rear tyres 20×10.00-8
Speed Continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h
Inner turning radius 70 cm
Seat Adjustable and with mechanical suspension. Equipped with roll-bar.
Service brake
Parking brake On the rear wheels with lever engagement.
Mowing capacity per hour (indicative) 8500 m^2/h
Standard features
Length 206 cm
Width 113 cm
Height 118,5 cm
Distance between axles 142 cm
Weight 370 kg
